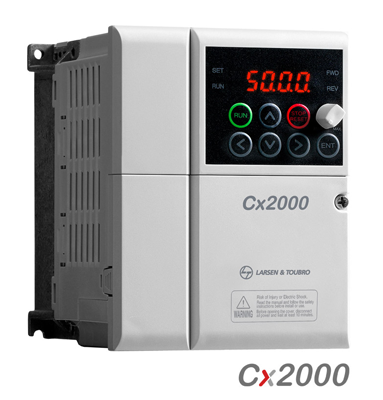

Cx2000

wonder-drop-409x540

Compact, lightweight, easy to install, operate and service – the Cx2000 is perfectly suited for conveyors, pumps, fans and textile machinery. It handles loads up to 11 kW, and is engineered to keep your machine operating at optimum efficiency, even in the hot, humid and dusty conditions that characterise India's industrial environment.

Range:
  • Single Phase 230V - 0.1 to 2.2kW
  • Three Phase 230V - 0.2 to 11kW
  • Three Phase 415V - 0.75 to 11kW
Enclosures:
  • IP20
Features:
  • V/F Control, Sensorless Vector Control, Slip Compensation
  • Starting Torque 150% at 3 Hz
  • Built-in Potentiometer
  • Conformal Coated PCB
  • Built-in RS485 Modbus
  • RPM Display
  • Draw Mode
  • Brake Control
  • Auto Tuning
  • Built-in PID
  • 2nd Motor Operation
  • Built-in Safety circuit
  • Built-in Braking Chopper up to 11kW
Dual rating operation:
  • Designed to be used for heavy and normal duty applications.
    Overload capacity
    • Heavy duty operation: 150% of rated current for 60 sec
    • Normal duty operation: 110% of rated current for 60 sec
Built-in Potentiometer:
  • Possible to add reference from keypad and external signal
  • Provides external potentiometer for easier frequency control
Built-in PID:
  • Cx2000 has built-in PID which saves use of external PID
2nd Motor Operation:
  • Single AC Drive can maintain 2 motor parameters connected to 2 different loads with different Accel / Deccl parameter setting
  • For isolated operation of motors one VFD can be used in place of 2
Easy Maintenance:
  • Tool-less replacement of Cooling Fan.
Built-in Brake Chopper:
  • Built-in brake chopper which saves panel space.
Cx2000 Catalogue
