Hazardous Area Motors

wonder-drop-409x540

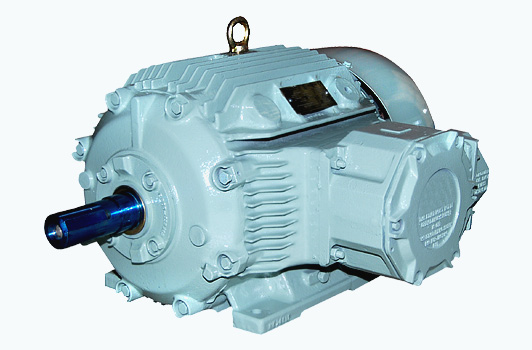

Flame Proof Motors


0.18 kW to 335 kW
From 80 to 355 Frame


THE WIDEST AVAILABLE RANGE

SQUIRREL CAGE MOTORS
0.37 kw to 355 kw (Frames E80 toE355 LX)

SLIP RING MOTORS
22 kw to 160 kw
(Frames EW 250 M to EW 315 L)

STANDARD SPECIFICATIONS

  • VOLTAGE : 415 ± 10%
    Other Voltage class (220 V - 660 V)
    available on request.

  • FREQUENCY : 50 ± 5%
    25 HZ to 60 HZ available on request.

  • Combined variation : ± 10 % (absolute sum)

  • INSULATION : Class F
    Class 'H' can be given on request.

  • RATING/DUTY : Continuous (S1)
    Intermittent duties available on request.

  • MOUNTING : Horizontal foot mounting (B3)
    Other mountings available on request.

  • PAINT : Epoxy anticorrosive painted surface
    (Standard shade 631 as per IS - 5)

  • AMBIENT / TEMPERATURE RISE : 45 C/75 C. Higher Amb. upto 60 C on request.

  • TEMPERATURE CLASS : T4

  • DEGREE OF PROTECTION : IP 54 - E80 - E132 M
    E225 M to E355 LX
    (IP55 with canopy can be offered.)
    IP55 - Frame E 160L to E 200 L.

  • ERTL / CCOE (PESO) / DGMS approvals as a
    standard feature. For BASEEFA approval please
    contact nearest branch office/works.

    SPECIAL PURPOSE MOTORS FOR
    1. Longwall mining equipment.
    2. High pressure mine ventilation fans with plug & socket arrangement.
    3. Auxiliary mine ventilation fans with rod mounting / flange mounting.
    4. Belt conveyors and armoured face/ chain conveyors.
    5. Side dump loaders, load haul dumpers
    6. Haulages (squirel cage and slipring motors).
    7. Dewatering pumps.
    8. Sucker rod pumps.
    9. Mud agitators & mud pumps.
    10. Slurry extraction pumps.
    11. Air compressors & blowers.
