Helical Gear Reducers – Aluminium

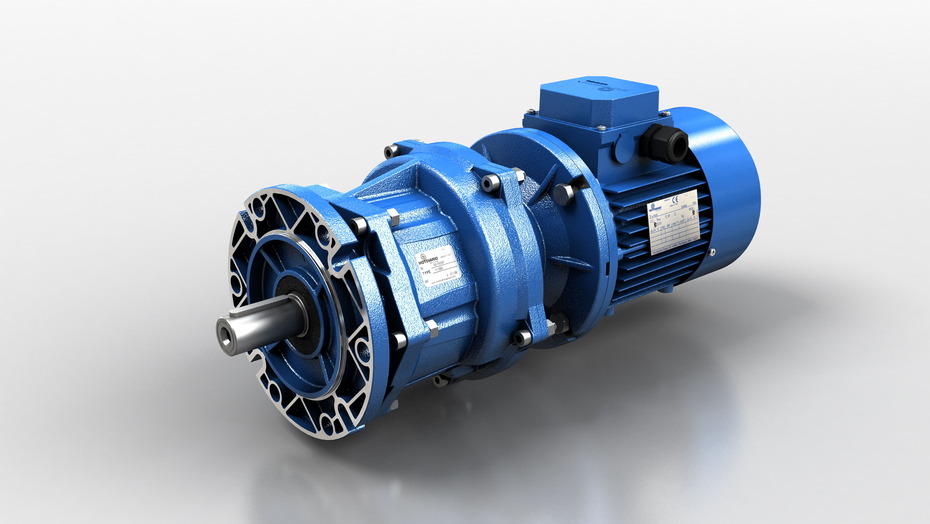

Designed to offer maximum reliability even in the harshest operating conditions, the HA product series guarantees complete versatility and is suitable for applications that require high radial loads.


  • The H-series includes a large number of extremely versatile models, in cast iron (sizes 030 to 140) or aluminium (sizes A30 to A60) casing.
  • Certifications Available: ATEX 3GD
  • Warranty: Two years from date of delivery.
Kirti Enterprie
  • CHARACTERISTICS
  • RANGE
  • DOWNLOADS

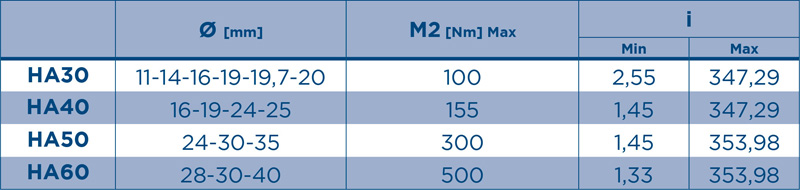

  • Sizes: A30-A40-A50-A60
  • Available versions: HA - fitted for motor coupling, IHA - with input shaft, CHA - with compact motor
  • Casing with feet, flange F or universal U
  • Power up to 5,5 kW
  • Gears hardened and tempered with shaved or ground profile
  • Gearing with 1, 2 and 3 reduction stages
  • Reduction ratios between 1,33 and 353,98
  • Torque max 500 Nm and admissible radial loads max 8.000 N
  • Cases in die-cast aluminium alloy
  • Load capacity calculated to ISO 6336 and verified according to AGMA 2001
  • Painted with RAL 5010 blue epoxy-polyester powder
