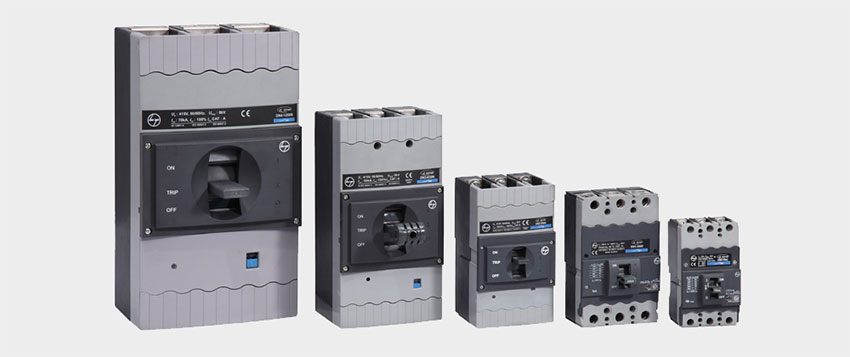

Features :

• Range : 16A to 1250A,3P/4P,6 frame sizes
• Breaking Capacity : 25kA/36kA/50kA/70kA/100kA
• Confirms to IEC60947-2,EN60947-2,IS/IEC60947-2
• Current Limiting Type MCCB
• Suitable for Isolation
• No Line Load Bias
• Microprocessor & Thermal-Magnetic based protection releases


• MCCBs for Special Applications :
  • Motor backup protection
  • DC Applications
  • Capacitor Application
  • Isolator Application
  • 690V Application


• MCCBs for different Solutions :
  • Total Discrimination
  • Auto Source Transfer System
  • Communication

Releases :

• MTX1.0 Release :
  • Overload Protection with inverse time delay
  • Adjustable Trip Class
  • Short Circuit Protection with Selectable time delay
  • Instantaneous protection
  • Provision of Thermal memory defeat
  • Self powered
  • True RMS sensing


• MTX2.0 Release :
  • Overload Protection with inverse time delay
  • Adjustable trip class
  • Short Circuit Protection with selectable time delay
  • Instantaneous protection
  • Inbuilt Earth fault and Neutral overload protection
  • Provision of Thermal memory defeat
  • Panel mounted OLED display for Current metering & Trip History
  • Self powered
  • True RMS sensing


• MTX3.0 Release :
  • Overload Protection with inverse time delay
  • I2t, I4t, SI, LI, VI based overload curves
  • Short Circuit Protection with selectable time delay
  • Instantaneous protection with fine settings
  • Advanced current and voltage based protection function
  • Inbuilt Earth fault and Neutral overload protection
  • Comprehensive current, power and energy metering
  • Provision of Thermal memory defeat
  • Panel mounted OLED display
  • Communication through MODBUS RTU protocol
  • True RMS sensing
  • Self powered


• Internal Accessories :
  • Auxiliary Contact
  • Trip Alarm Contact
  • Auxiliary + Trip Alarm Contact
  • Shunt Release
  • Under Voltage Release


• External Accessories :
  • Direct & Extended Rotary Handle
  • Spreader Terminals
  • Stored Energy Electrical Operating Mechanism
  • External Neutral CT
  • Adaptor kit for Neutral CT
  • Mechanical Interlock Kit
  • Key lock for Interlocking
  • Auto Source Transfer Controller
  • Ground Fault Module
  • Modules for MTX releases
