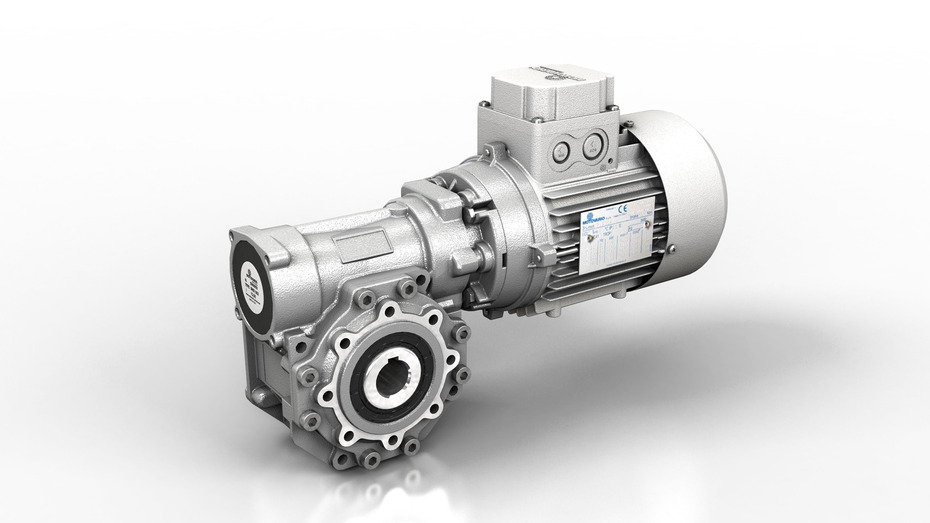

Worm Gear Reducers for Aggressive Environments
Worm Gear Reducers for Aggressive Environments
The need to provide geared motors suitable for use in wet and corrosive environments has led Motovario to design a new product range specific to these fields.
- These products use materials, surface treatments, components and mechanical process for the motor and gearbox to increase both resistance and reliability.
- Warranty: Two years from date of delivery.
NMRX & SWX
- NMRX Sizes: 040-050-063-075-090

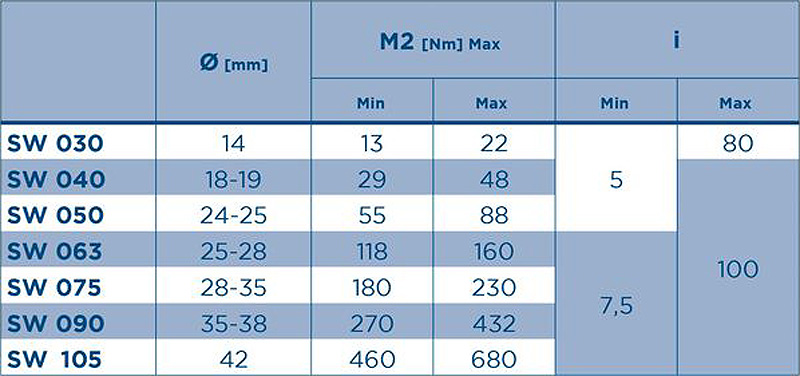

- SWX Sizes: 030-040-050-063-075-090-105
- Power up to 4.8 kW
- Reduction ratios between 5 and 100
- Max torque 660 Nm and admissible radial loads max 10.320 N
- Hollow low speed shaft AISI 304
- Synthetic oil
- Painted with RAL 5010 blue epoxy-polyester powder
- Available SWX geared motors ANTICORROSION Series version with Optional Special anticorrosion painting Blue RAL 5010 / Grey RAL 9006 / White RAL 9010
SWFX
- For Food industries
- Sizes: 030-040-050-063-075-090-105
- Hollow low speed shaft AISI 316
- Specific adhesive nameplate for aggressive environments
- Specific input flange to seal Reducer/Motor coupling
- Anti-corrosion screws AISI 316
- Threaded holes sealed using pressed plugs without recesses “Sealed” casing
- Output seals FDA compliant
- Shielded bearings on low speed shaft 2RS type
- Food grade lubricant, Class UH1
- Double layer epoxy painting FDA approved white RAL 9010
Wide range of options to customize the reducer according to customer requirements
