Worm Gear Reducers, Combined and With Pre-Stage Reduction Unit
Worm Gear Reducers, Combined and With Pre-Stage Reduction Unit
NMRV and NMRV POWER worm gear reducers currently represent the most advanced solution to market requirements in terms of efficiency and flexibility. The new NMRV Power series, also available as compact integral helical/worm option, has been designed with a view to modularity: low number of basic models can be applied to a wide range of power ratings guaranteeing top performance and reduction ratios from 5 to 1000.
- Certifications Available: ATEX 2GD/3GD
- Warranty: Two years from date of delivery.

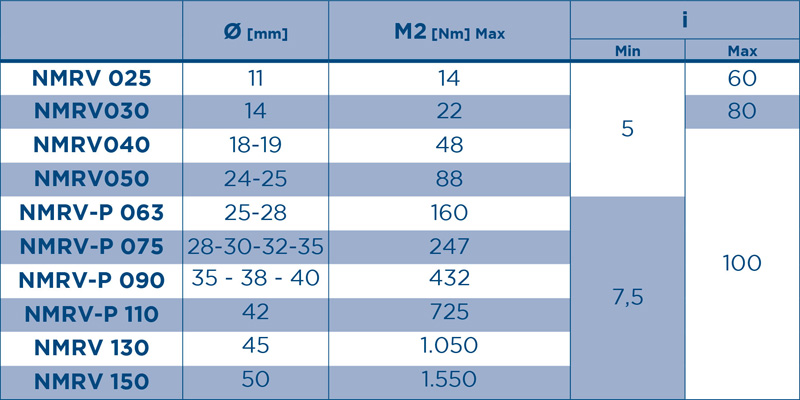

- NMRV – Sizes: 025-030-040-050-130-150
- NMRVpower – Sizes: 063-075-090-110
- Available versions: fitted for motor coupling, with input shaft, with torque limiter
- Power up to 18,5 kW
- Cases up to 110 in die-cast aluminium alloy and over 130 in G200 grey cast iron
- Ratios between 5 and 100
- Max torque 1.550 Nm and admissible radial loads max 18.000 N Aluminium units are supplied complete with synthetic oil and allow for universal mounting positions, with no need to modify lubricant quantity
- Worm wheel: bronze Cu Sn12 Ni2 (UNI7013-10)
- Ground worm profile ZI (UNI4760)
- Loading capacity in accordance with: ISO.14521, DIN.3996, BS 721, AGMA 6034, ISO 6336, DIN 3990, DIN 743, ISO 281
- Size 030 and over are painted with RAL 5010 blue epoxy-polyester powder

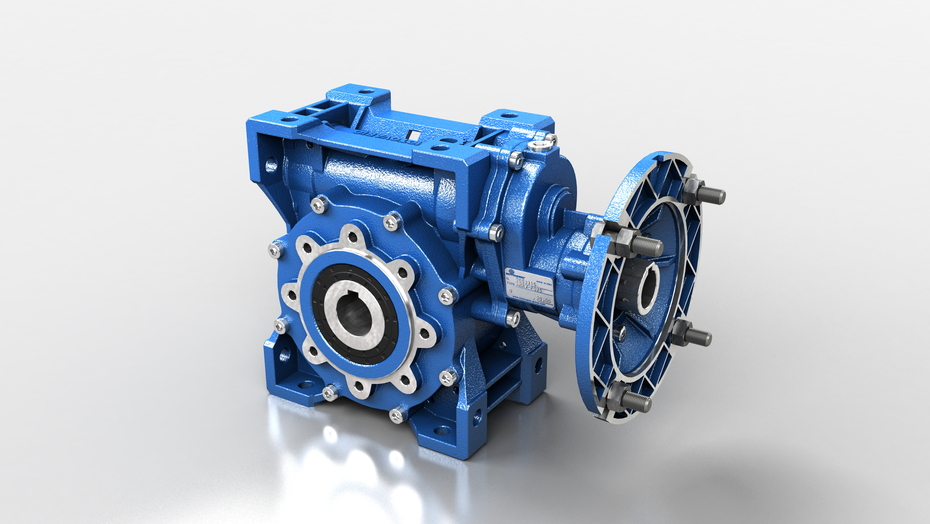

- Available with pre-stage unit: HA31 for NMRV040/NMRV050, HW 030/040 for NMRV-P Series

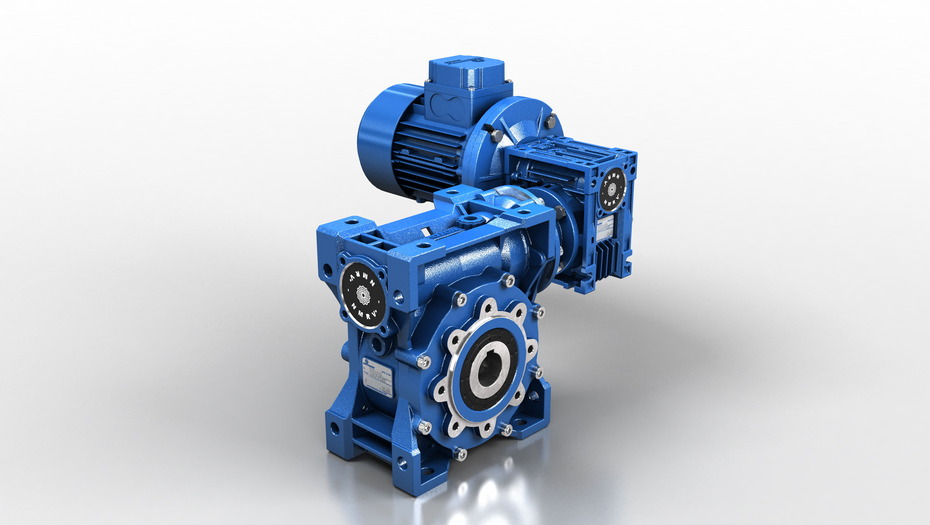

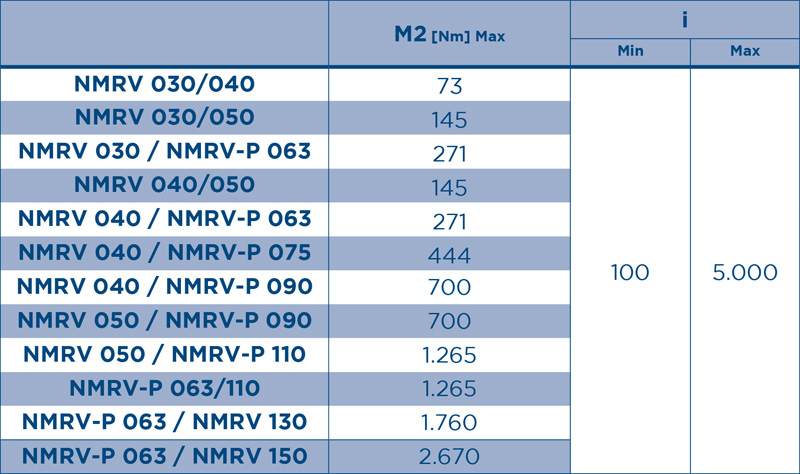

- Worm gear reducers are available with diffferent combinations: NMRV+NMRV, NMRVpower+NMRV, NRV+NMRV, NRVpower+NMRV, HA31+NMRV, HW/NMRVpower, IHW/NMRVpower
- Options: protection cover, torque arm, output flange, output shaft kit, torque limiter, viton oil seals, low/high temperature and food grade oil, filling/drain/breather/level plug, reinforced output
