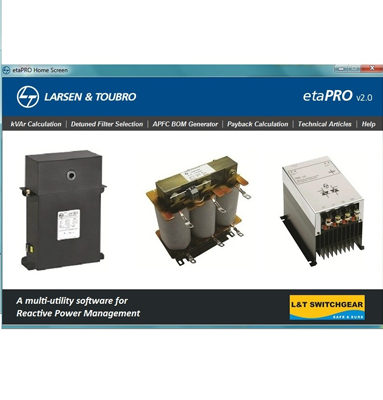

Features :

• Easy calculation of capacitor kVAr rating if existing and target power factor are known with payback calculation
• Selection of right capacitor-reactor combination (detuned harmonic filter)
• Generation of bill of materials, covering capacitor selection, switchgear selection, switching device selection with catalogue numbers and MRP of all the items in the panel, that can be exported to excel format.
• BoM generation up to 1400 kVAr APFC Panels with maximum 14 steps
• Switchgear selection options for main incomer (ACB, MCCB and SDF) and branch protection
• (MCCB, SDF, HRC Fuse and MCB)
• Accessories selection for the selected switchgear
• Instant catalogue access for selected switchgear/capacitors
• Technical articles and presentations - 24 technical articles and technical presentations related to reactive power and harmonic filtering
