Switch-Disconnector-Fuse :

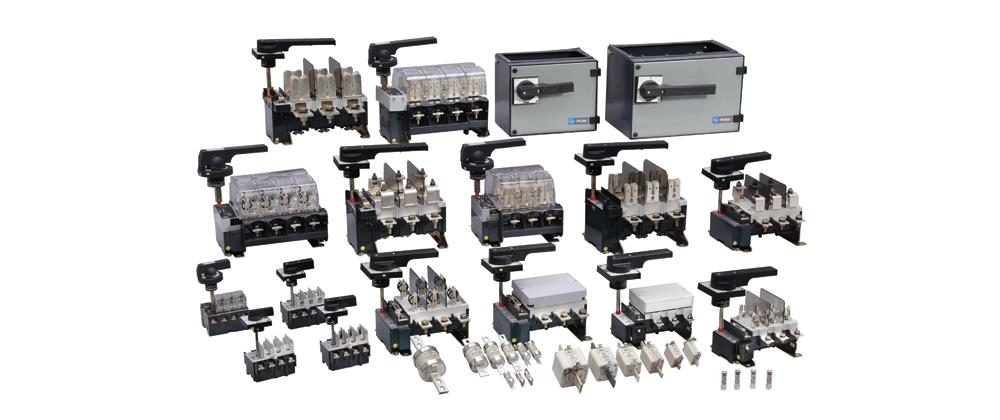

Switch-Disconnector-Fuse Range FN & FNX :

• S-D-F range covers ratings from 32A to 800A. S-D-F’s range is available in both open execution & Sheet steel enclosure version (Suitable for 14x51 Cylindrical, DIN, BS type fuse-link)
• S-D-F range provides users with a high level of safety & Convenience. The complete range conforms to IS/ IEC60947-3 standards.
• It also carries the CE marking signifying compliance to stringent European safety norms.
• S-D-F's superior features translate into better safety & convenience for the users.
• Fuse barriers & Terminal shrouds provide protection against accidental direct contact. Terminal shrouds also protect against phase to phase short circuit through an external conducting path.
• Double isolation of fuses when S-D-F is in OFF position makes replacement of fuses risk-free.
• Positive ON / OFF indication ensures that the handle indicates OFF position only when main contacts are actually open.
• Large ground clearance eliminates possibility of phase to ground flash over.
• Built-in padlocking arrangement provided to lock the unit in OFF position prevents inadvertent operation of the unit.

Versatile handle :

• The handle coupling has the following user-friendly features:
  • Door interlock (defeatable)
  • Padlock up to 3 locks
  • Choice of operating quadrant
  • Flexibility (± 3mm mismatch operational quadrant)
• The Switch-Disconnector-Fuse provides complete Flexibility in mounting; Unit can be mounted at any angle in a vertical plane.
• Handle depth can be varied and fixed as per requirement during installation. This is possible because the telescopic shaft can be adjusted for stepless variable depth.
