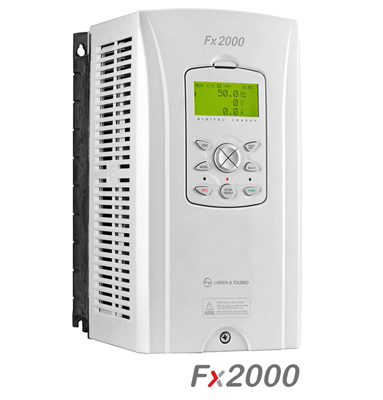

The Fx2000 generates powerful performance and meets your precise needs through several features: superior V/F control, V/F PG, slip compensation and Sensorless vector control as well as closed-loop vector control.

t has a user-friendly interface and environment-friendly features, including a wide graphic LCD keypad, user and macro-group support, electro-thermal functions for motor protection, and protection for input/output phase loss.

The Fx2000 is perfectly suited for the toughest, most complex applications – cranes, plastic winders, high-speed elevators, cement kilns, crushers and many more.

It handles loads up to 375 kW - HD / 450 kW - ND, and is engineered to keep your machine operating at optimum efficiency, even in the hot, humid and dusty conditions that characterize India's industrial environment.


Range :
  • Three-Phase 415V - 0.75 to 450 kW
Enclosure :
  • IP21

Features :
  • V/F control, V/F PG, Slip compensation, Sensorless vector control, Close Loop Vector Control
  • Ideal for Heavy Duty Application Crane, Winder, Textile Application, Plastic extruders
  • Built-in Crane & Wobbulation Algorithm
  • Starting Torque: 250% at 0Hz for Closed Loop
  • Conformal Coating complying to IEC 60721-3-3 class 3C2
  • Built-in RS485 Modbus
  • WEB Software control for Winder Application
  • Optional Smart PLC
  • User Defined Macro
  • Built-in DC Reactor from 22kW to 280kW
  • Built-in Braking Chopper till 30kW

Dual rating operation :
  • Designed to be used for heavy and normal duty applications.
      Overload capacity
    • Heavy duty operation: 150% of rated current, 60 sec, 200% for 3 sec
    • Normal duty operation: 110% of rated current, 60 seconds
User Defined Macro Function :
  • User can collect parameters that are often used and keep them in User Group
  • Some parameters for a specific application are in Macro Group
Easy Start :
  • EASY START helps beginner users to set the essential parameters easily.

Applications
  • For Crane Control (External Brake Control)
    • Fx2000 provides external brake control function for vertical loads such as Cranes, Lifts etc.
    • User can set Brake Release freq., Pre-excite time.
    • Separate parameters for hoist and lowering
    • It can operate in Open Loop & Closed Loop System.
  • Winder Software (WEB) for Winder Application
    • Tension control with load cell / dancer
    • Thickness calculation
    • Splicing function
    • Draw function
    • Traversing function
    • Diameter calculation
    • Taper function
    • Open-loop control
  • Traverse Control
    • Ideal for Textile
    • Disturbance Pattern
    • Built-in Macro
    • No external controller required
Droop Control :
  • It uses the drooping characteristic of the speed with respect to the torque reference
  • In order to get good quality of product, this machine requires uniform torque from multiple motor.
  • Increase the product quality by load balancing
KEB (Kinetic Energy Buffering) for power-failure :
  • If power-failure occurs, Fx2000 keeps controlling motor with regenerative energy till power recovery
  • If outage is too long, Fx2000 safely decelerate the motor until it stops
Optional Card :
  • PLC Card (6DI, 4DO, Built-in RTC)
  • Encoder Card
  • I/O expansion card
  • Synchronisation Card
  • Position control card
Communication Card :
  • Profibus-DP
  • DeviceNet
  • Ethernet Modbus-TCP IP
  • CANopen
