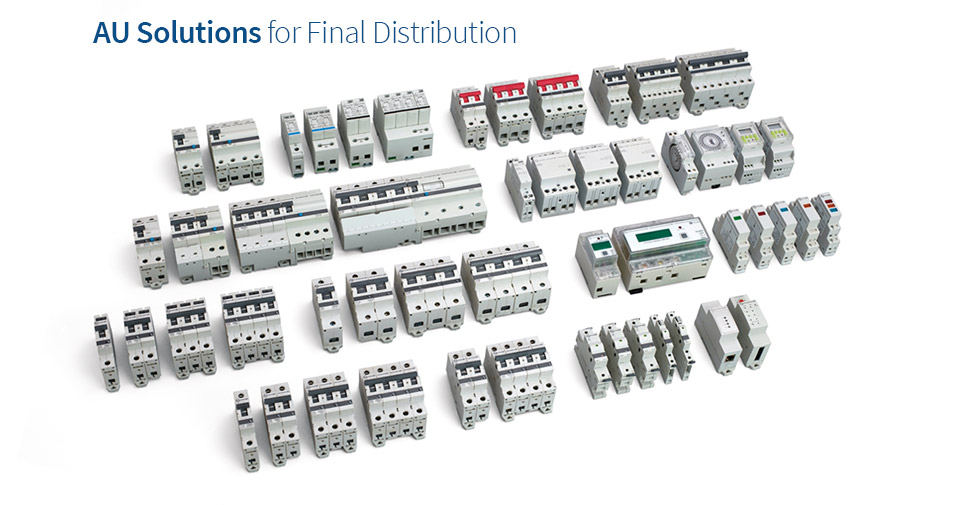

AU Solutions
A comprehensive range for real world applications
L&T'S AU Solutions for final distribution offer a unique blend of safety, convenience and performance. Each product in the AU Solutions range is designed to provide lasting benefits.
Protection Devices :
- MCBs
- 0.5A - 125A
- B, C, D Curves
- SP, DP, TP, FP, SPN, TPN
- RCCBs
- 16A - 100A
- 10mA - 500mA
- DP, FP
- Type AC, Adi
- RCBOs
- 6A - 63A
- 10mA - 300mA
- DP, FP
- Type AC, Adi
- SPDs
- Type 1+2, Type 2
- 1P+N, 3P+N
Monitoring Devices :
The AU Solutions range of protection devices are complemented by a host of monitoring devices.
- Accessories
- Auxiliary Contact (AUX)
- AUX/TAC (Trip Alarm Contact)
- Undervoltage Release (UV)
- Overvoltage Release (OV)
- Shunt Release (SR)
- Padlocks
- Energy Meters
- Single-phase
- Three-phase
- Indicating Lights
- For single-phase and three-phase supply
Control Devices :
The AU Solutions range includes a host of Control Devices.
- Isolators
- 25A to 125A
- DP, TP & FP
- Modular Contactors
- 25A to 63A
- SP, DP, TP & FP
- Changeover Switches
- 25A to 63A
- DP & FP
- Time Switches
- Digital
- Analog
- Astronomical
Communication Solution
AU-COM addresses the remote monitoring and controlling requirement of the building and industrial segments. The communication solution consists of AU-COM & AU-CON (an optional Convertor Module). Highlights
- In absence of control circuits, one can connect a maximum of 4 Auxiliary Contacts (AU-AUX) and 4 Trip Alarm Contacts (AU-TAC) with AU-COM
- With 2 control circuits in place, a maximum of 2 Auxiliary Contacts and 2 Trip Alarm Contacts can be deployed for status monitoring
- In all, 15 AU-COM modules can be connected in the system
- For remote monitoring and metering of energy, single-phase and three-phase energy meters with:RS 485 Module - Wi-Fi module
