The traditional Stone Ground method grinding of wheat between stones is used to develop a flour of the highest quality. It is slow process that helps to retain the flours natural state of minerals, vitamins and proteins.
The stone ground flour motto of, “nothing added nothing removed” means exactly that. The goodness that goes in the top of the mill is what comes out at the bottom. The Stone Mills flour is stone ground in a very special way. This stone grinding process ensures a particularly natural and healthy end product. No iron or preservatives or any other colours or bleaching agents have been added. The stone mill is one of the original mills used for grinding wheat, uses a combination of compression, shear, and abrasion. The grinding action occurs between two stones. The material is fed into the centre of the top stone, which is fixed and does not rotate. The bottom stone is driven by a drive mechanism. The grinding gap between the stones is adjusted with a hand adjustment that raises and lowers the stone. The raw wheat material is then ground between the stationary and moving stone and the material is pushed radically to the circumference by grooves and furrows cut into the face of the stone. The ground material is discharged by the rotation motion and is conveyed out by the furrows.
Chakki milling in India is almost same as Stone milling in the western world. The basic principal of Stone milling is same as the Household Chakki milling. There are enhancements like automatic control of the spindles to adjust space between the disks. The process results in 15% to 20% starch damage and no loss of Ash.

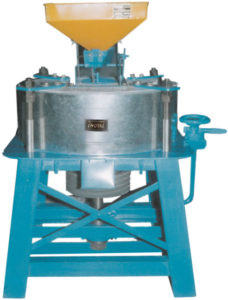

Size – 300MM to 600MM
These mills are precisionly designed for extremely low vibration while running.
These are fitted with long lasting bearings, have a strong & balanced C.I. casting body that is mounted on mechanically balanced base.
ITEM NO. | SIZE OF MILL |
---|---|
F410 | 450 MM RAJKOT TYPE VERTICAL FLOUR MILL COMPLETE WITH STONE |
SPECIFICATIONS* | |
---|---|
IRON HOPPER CAPACITY | 35 KGS* |
BEARING SIZE/NO. | 6208 |
SHAFT LENGTH | 24" (610MM) |
SHAFT DIA | 40 MM |
DIAMETER OF PULLEY | 350.MM |
DEPTH OF DRUM | 10" |
NET WEIGHT | 350 KGS |
R.P.M. REQUIRED | 550 |
H.P REQUIRED | 7.5-10 |

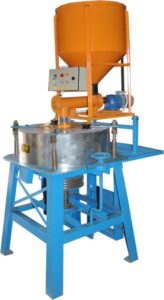

Size – 350 MM to 1200 MM
Horizontal Grinding Mills are modern day answer for cost effective grinding of wheat, cassava, maize. The machine is very simple in operation and easy in maintenance. They are capable of producing Flour with high nutrition value with their unique feature of cool grinding. This machine is multipurpose and is used for grinding soft minerals, coconut shell and various industrial uses. The machine mainly consists of 2 Nos. emery stone one fixed & the other movable to adjust the gap between the stones. The degree of grinding is adjusted by means of a hand wheel regulating the grain supply.
S.N | PARTICULAERS | 750 MM | 750 MM |
ITEM NO. | F540 | F540 |
