Special Purpose Contactor

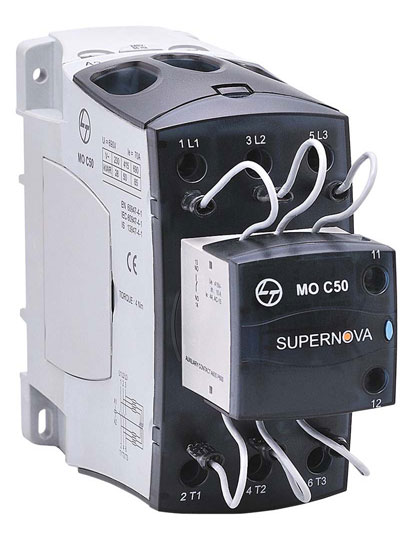

Capacitor duty contactor- MO C
L&T’s range of capacitor duty Contactors is specially designed for capacitor switching applications. As capacitor switching is associated with high inrush current, the contactors are provided with damping resistors which limit the value of inrush current to a safe value. The contactors are used in APFC panels for switching power capacitors. Selection of these capacitors depends on the amount of reactive power compensation required.
Features
- Separately terminated de-latching contacts for enhanced operational reliability
- Improved switching performance
- Dual contact gap for auxiliary contacts
- Separate termination of damping resistors
- Encapsulated resistor assembly
- Wide and chatter-free operating band
- Higher electrical life
- Enhanced product safety
Single pole contactors
MR range of single pole contactor caters to single phase applications. The contactors are rugged and have a wide operating band. Typical applications include Compressors in air-conditioning equipment, Single Phase Pumps, Single Phase Power Supply, Single Phase Heater etc. Their high AC-1 rating ensures better overload capacity.
Features
- Range 16A-40A AC-3
- Conforms to Conforms to IEC 60947-4-1, IS /IEC 60947-4-1 standards
- Available with screw and fast on type terminations (Optional)
